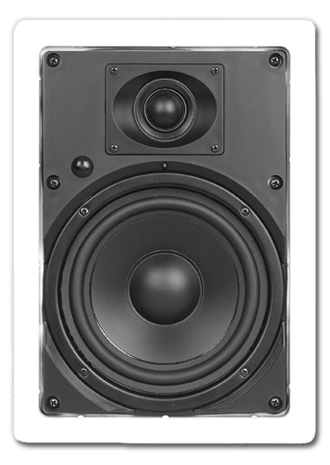

In-Wall Speaker - SE-791E

Speaker Grille Rectangle - Thumbnail

Downloads

Lifetime Limited Warranty

CEDIA and RoHS Logos

Product Line - Architech - Premium Series

MODEL: SE-791E

6-1/2" 2-way In-Wall Loudspeaker



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.

The SE-791E is a 6-1/2" Rectangular 2-way In-Wall Loudspeaker, sold in pairs.


 SPECIFICATIONS
Model Number: SE-791E - 6-1/2" 2-way Rect. In-Wall Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 1" pivoting textile dome tweeter
Grille:
Impedance: 8 ohms nominal
Pre-construction Bracket:


 FEATURES
Poly woofers with butyl rubber surrounds
Industry Leading Superior Clamp-ring Mounting System
IR knockout
Poly-switch overdrive protection
12 dB/octave crossover
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs


 DIMENSIONS & WEIGHTS
Overall Dimensions: 8-5/8" W x 12-1/8" H
Cut-out Dimensions: 7-3/8" W x 10-7/8" H x 3-1/8" D
Shipping Weight: N/A
Net Weight:  N/A

Master Carton Dimensions: 22"x15"x25"
Master Carton Weight: 39 lbs.
Master Carton Quantity: 3 pairs
Inner Carton Dimensions: 15"x12"x12"
Inner Carton Weight: 13 lbs.
