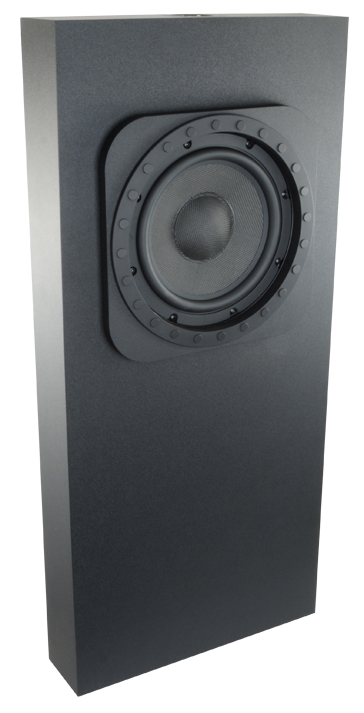

Shallow Loudspeaker Enclosure - ENC-816LP
Pictured with SE-80SWf Subwoofer &
ENC-IRA8 in-room adapter (not included)


ENC-816LP - Detail
ENC-816LP Terminals Detail

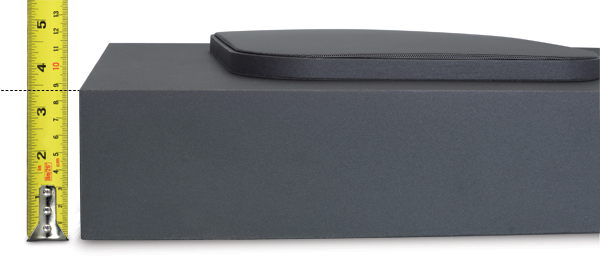

ENC-816LP Depth Detail
ENC-816LP
Depth Detail

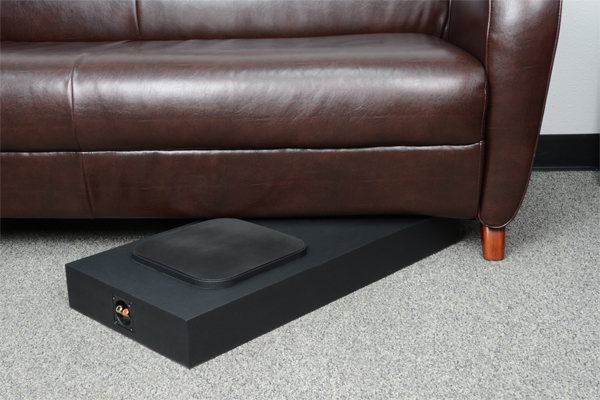

ENC-816LP Under Couch Detail
ENC-816LP
Under Couch Detail

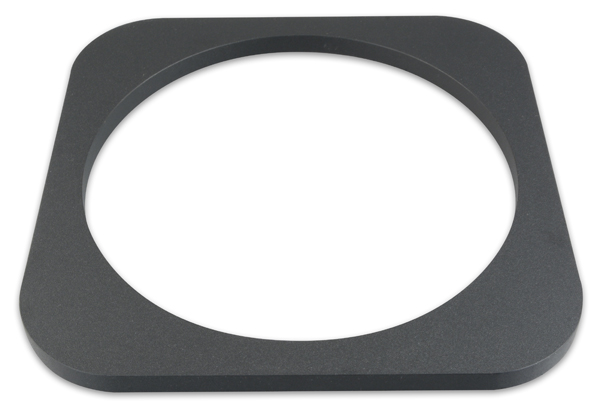

ENC-IRA8 - Detail
ENC-IRA8
In-Room Adapter
ENC-LB - Detail
ENC-LB
Longer Brackets
(for over 16" O.C. joists)
- The standard stock brackets will extend to 18" max (up to 19.2" O.C.)
- The ENC-LB on one side (2) w/ standard stock brackets on the other side (2) will extend to 22.5" max (up to 24" O.C.)
- The ENC-LB on both sides (4) will extend to 28.5" max

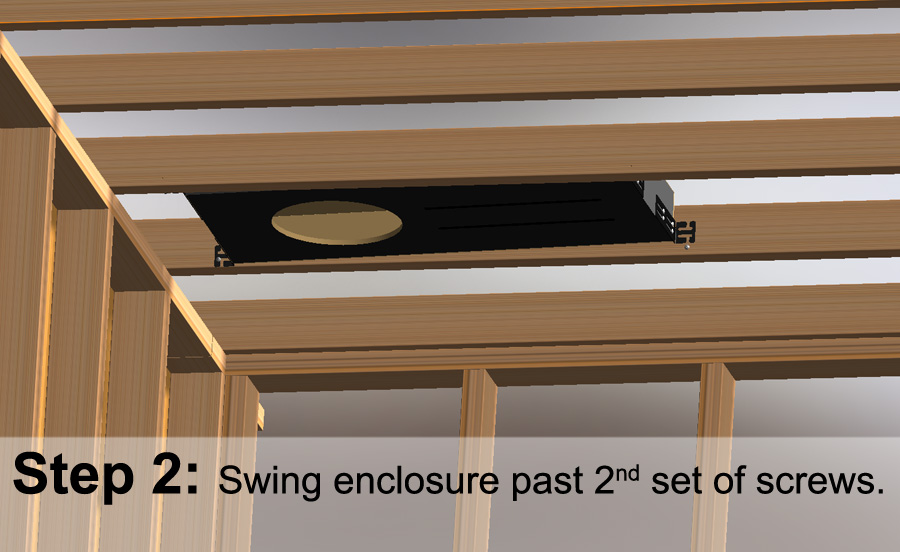

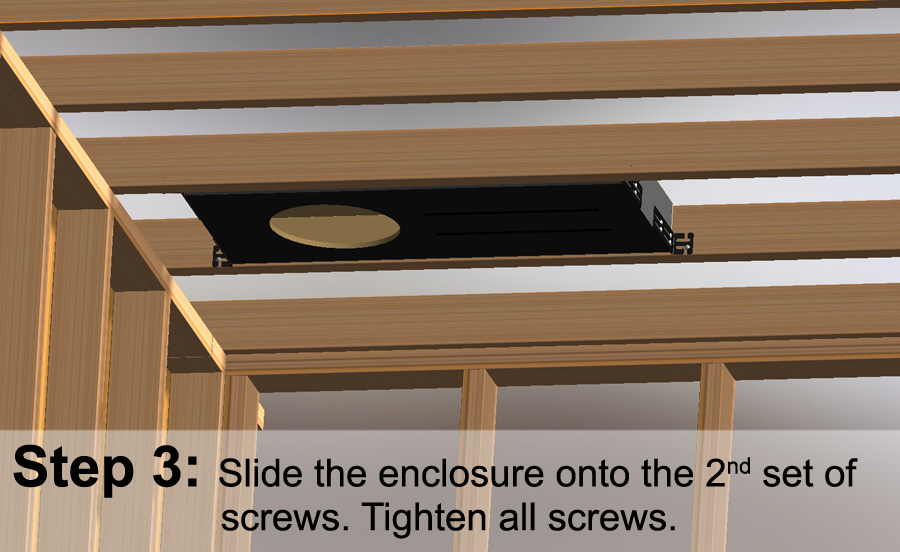

Easy In-Ceiling Installation
ENC-816LP - Detail ENC-816LP - Detail ENC-816LP - Detail

Downloads

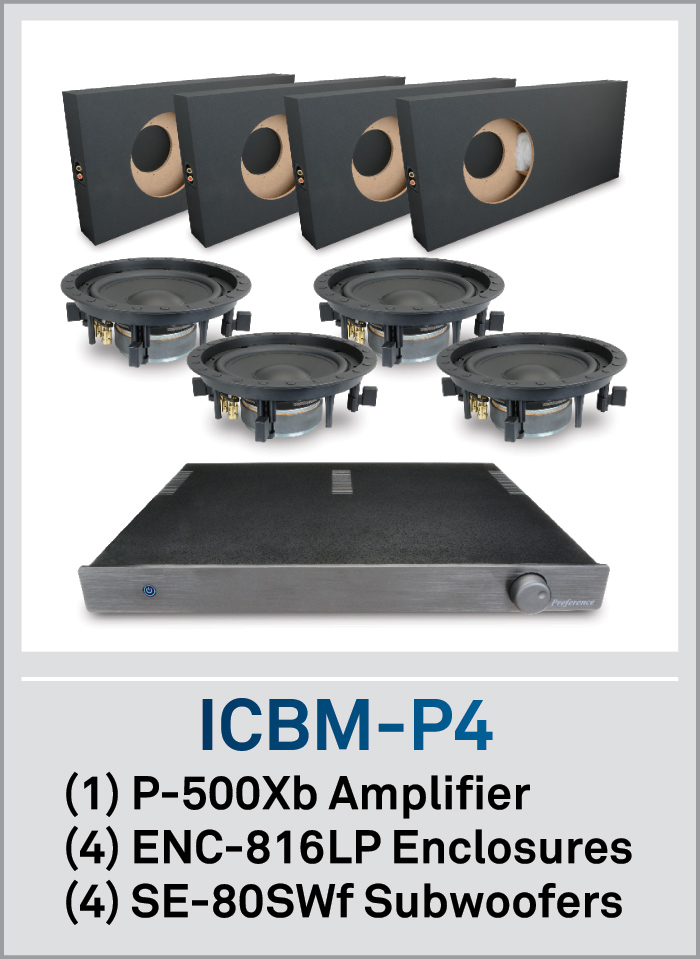

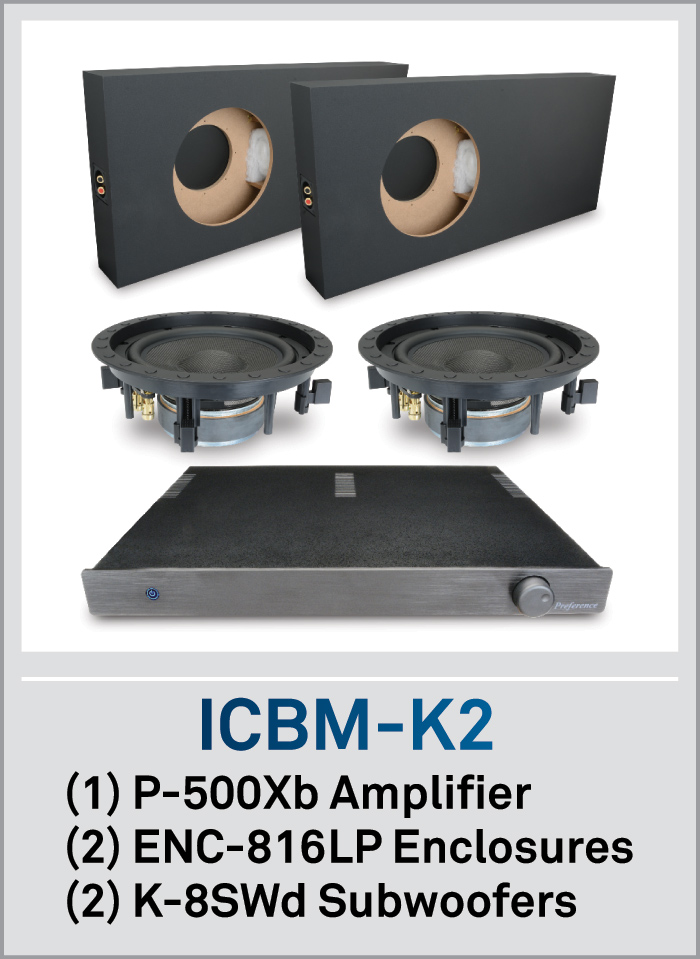

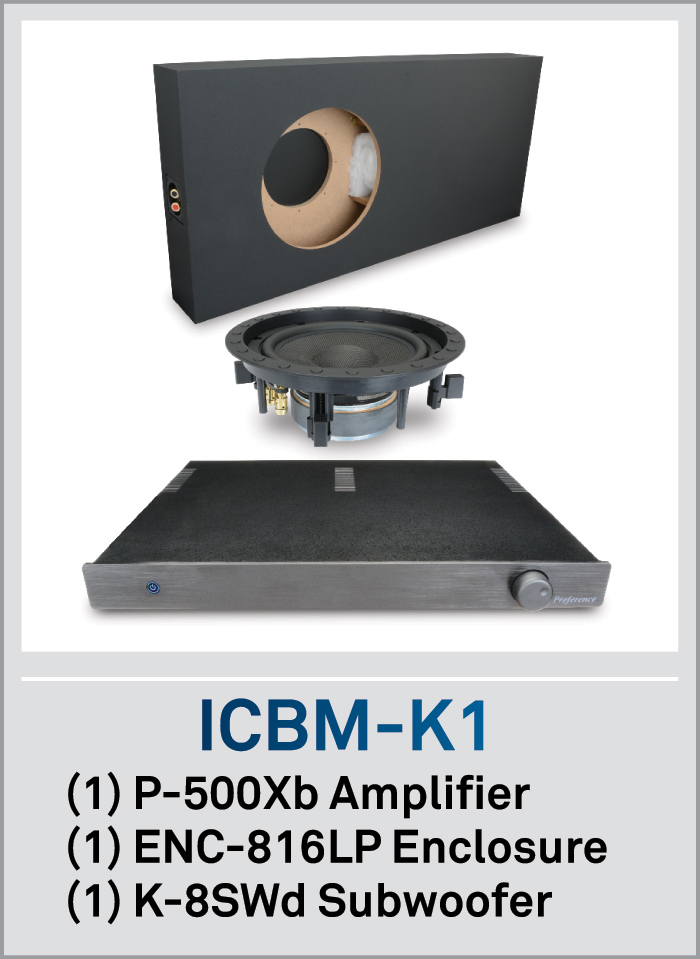

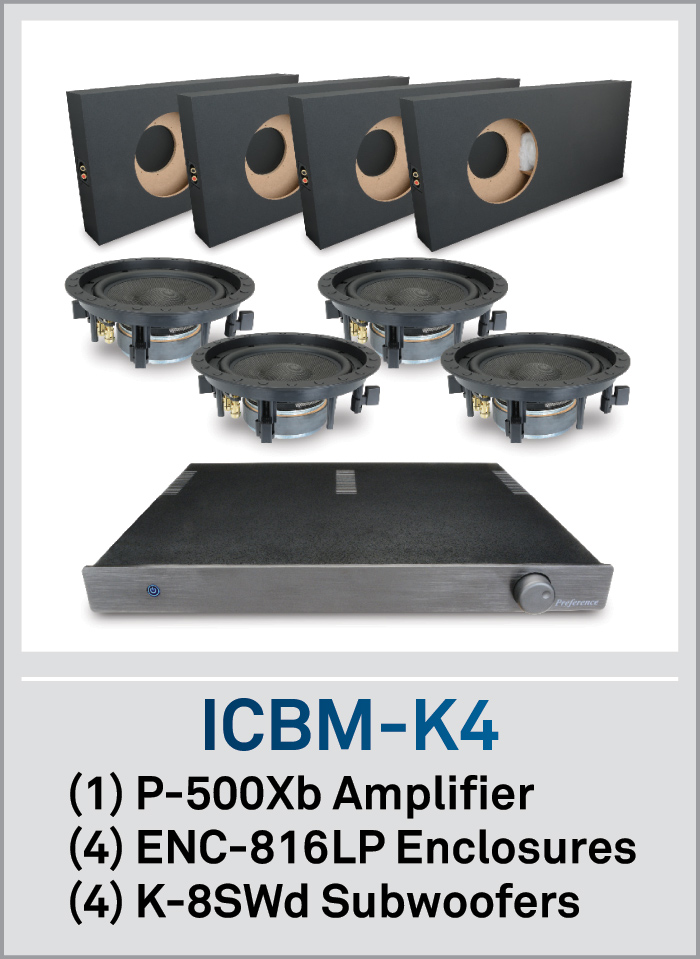

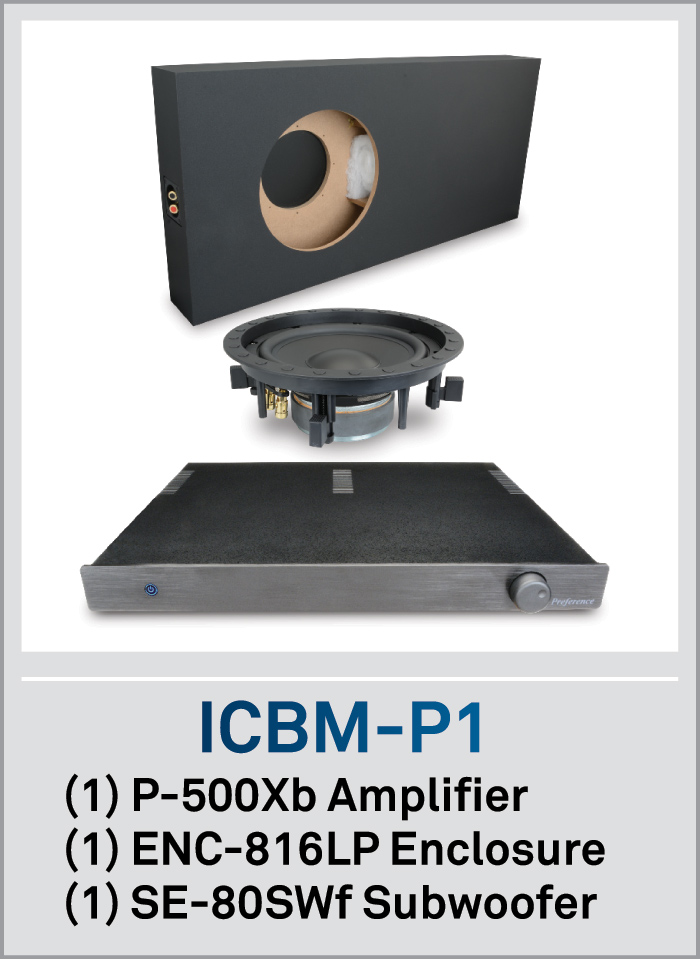

Press (ICBM System)


Lifetime Limited Warranty

CEDIA and RoHS Logos

MODEL: ENC-816LP

Shallow Enclosure for 8" Subwoofers & Speakers



 DESCRIPTION


 SPECIFICATIONS
Model Number: ENC-816LP - Shallow Enclosure for 8" Subwoofers & Speakers
Terminals: High-tension, spring-loaded, gold-plated
Mounting: Snap-Trac brackets for standard mounts included
In-Room Use (non-mounted): In-Room Adaptor available (ENC-IRA8)
Frameless Grille: Magnetic Black Grill available (MGS-8f-B)
Additional Brackets: Longer brackets available for mounting between
  wider joist dimensions (ENC-LB)


 FEATURES
Sized to fit easily into 16" construction bays
Also fits easily beneath, beside and behind furniture
Comes complete with all standard mounting accessories
Internally braced and heavily glued seams and joints
Gold-Plated, High-Tension Spring Terminals
Non-reflective finish hides ENC-816LP effectively from view


 DIMENSIONS & WEIGHTS
Overall Dimensions: 13.5"W x 29.5"H x 3.375"D (34.3x75x8.6) mm
Driver Cut-Out: 8.6" Diameter
Shipping Weight: 16 lbs. (7kg)
Net Weight:  N/A

ENC-LB
Overall Dimensions: 1.5"W x 1.375"H x 10.5"D (38.1x34.9x266.7) mm


POLY1 POLY2 POLY4
Kevlar1 Kevlar2 Kevlar4
