SC-800

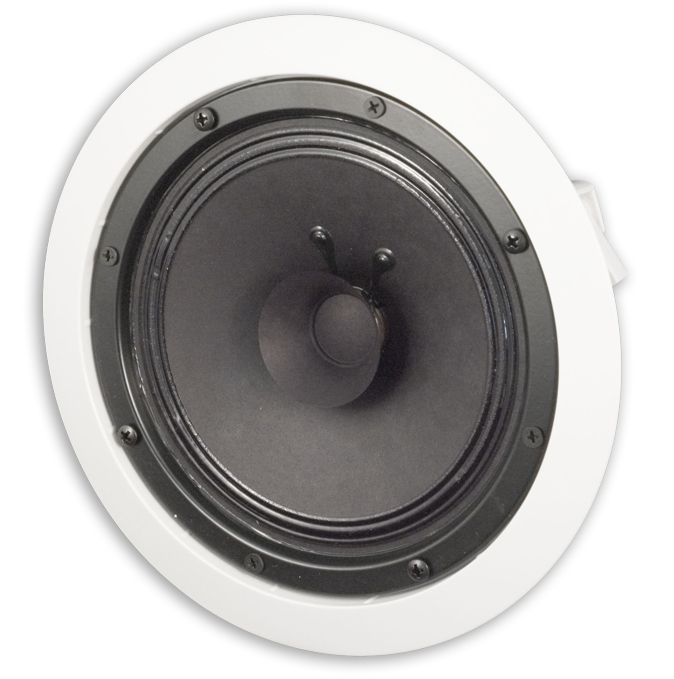

8" In-Ceiling Loudspeaker
Description
The SC-800 is suitable for both commercial & residential. Integrated transformer mounting location for 70/100 Volt transformers. High efficiency and value with great low profile perforated steel grille and fast toggle mounting.
8" Full Range Dual Cone
with open back
Downloads
Brochure [PDF]
Specifications
Frequency Response:
60Hz - 5kHz ± 3 dB 45Hz - 15kHz + 3 /-6dB
Power Handling:
40 watts max.
Sensitivity:
92dB 2.83 V @ 1m
Tweeter:
(none)
Dual Cone
Grille:
Perforated Metal Grille MODEL:
MGR-8
Impedance:
8 ohms (70/100 volt transformer available)
Pre-construction Bracket:
RIR-8
Vapor Dome / Pre-con Bracket:
VPD-8
Bridge for T-Bar Ceiling:
PB-8
Plenum Dome:
PE-8
Warranty:
Lifetime Limited Warranty
Features
Quick spring post terminals
No Soldering or crimping required
Dog Ear Mounting
Proven mounting system
Sold and Shipped Individually
Dimensions & Weights
Overall Dimensions:
9-5/8" round
Cut-out Dimensions:
8-9/16" round x 3" deep
Shipping Weight:
n/a
Net Weight:
n/a
