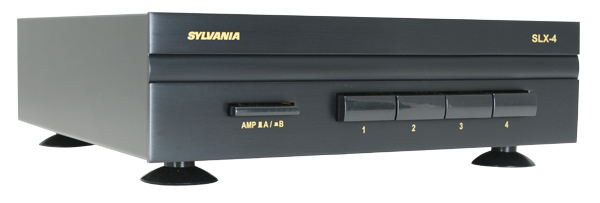

SLX-4 Features
The SLX series speaker selectors are equipped with the all new and revolutionary MB-4 wiring harness connection system, which has the following exclusive benefits: - Positive connections that will not work themselves loose like the popular “spring clip”
or “quick connect” types. - Dramatic time savings in installation and set-up - Dramatic improvement in connection integrity - absolutely superior quality terminations. - Performance improvement - Makes troubleshooting system connections extremely quick and easy
The SLX-4 includes 120 high quality pre-printed labels that slip into the label channel above the room switches. - view lablels
These high quality labels are named with nearly every conceivable room or area name indoors and outdoors for both residential and commercial use, making these units highly adaptable and user friendly.
SLX-4 Specifications
Model
Quantity of
MB-4
included
Speaker
Pairs
RMS Power Handling
A/B Source
Switching
Design
SLX-4
1
4
125 Watts / Channel
YES
Resistor
SLX-4 Dimensions and Weights
Dimensions
Net Weight
8-1/2" W x 2-5/8" H x 9" D
3.6 lb

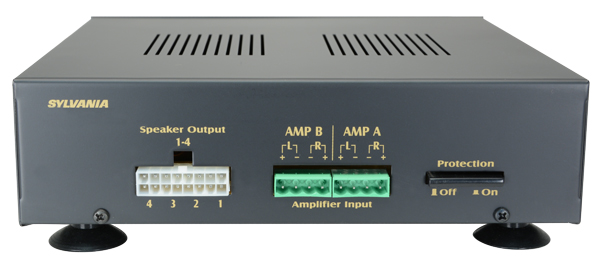

SLX-4 (rear view)
SLX-4 Accessories

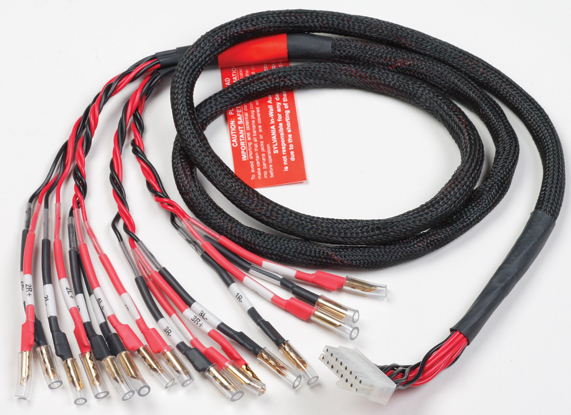

(MB-4 shown above)
MB-4 Each MB-4 provides connections for 4 pairs of speakers. The MB-4 wiring harness is approximately 4’
in length. It is terminated on one end with a 16 conductor molded nylon locking connector and 16
high-
grade gold plated banana plugs on the other end.
The molded nylon connector snaps and locks into the rear panel of the SLX speaker selector providing
a positive connection for all 16 conductors. These connections are not subject to “working loose” or becoming loose from minor movement such that these type of devices are subjected to from routine dusting (house cleaning).
The 16 banana plugs are clearly labeled to facilitate organized and confusion-free connections to the “head-out”. The head-out is the point where the speaker wire transition into the wall and make their way
to the volume controls and speakers.
The SLX-4 includes one (1) MB-4 appropriately labeled for speaker pair numbers 1-4.
The banana plugs of the MB-4 wiring harness plug directly into industry standard banana jacks or
“5-Way” binding posts for a very professional and attractive finished look.
