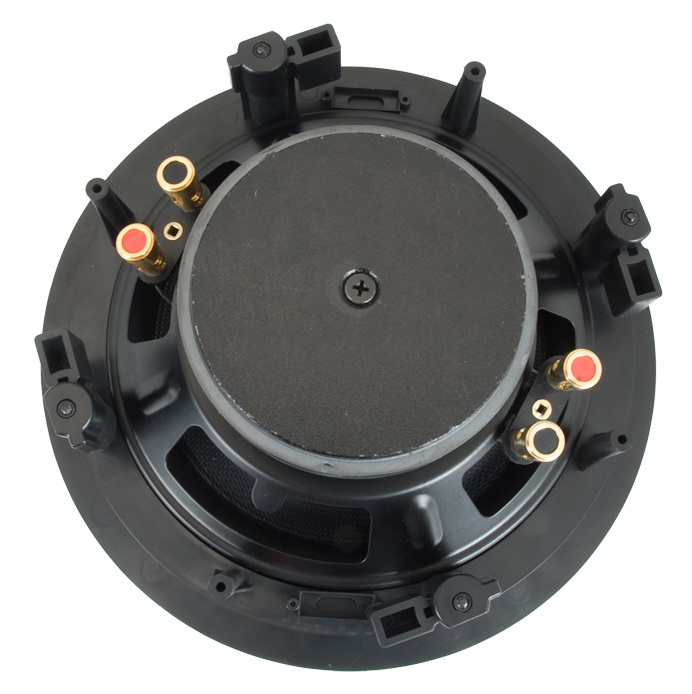

In-Ceiling Speaker - SC-822f - Thumbnail In-Ceiling Speaker - SC-822f - Rear View Frameless Speaker Grille - MGR-6f - Thumbnail
MGR-6f		 Frameless Speaker Grille - MGS-6f - Thumbnail
MGS-6f

Downloads
Installation Guide Frameless [PDF]
ArchiTech Series Brochure [PDF]

Lifetime Limited Warranty

CEDIA and RoHS Logos
Product Line - Architech

MODEL: SC-822f    *Discontinued*

8" 2-way Single Point Stereo In-Ceiling / Wall

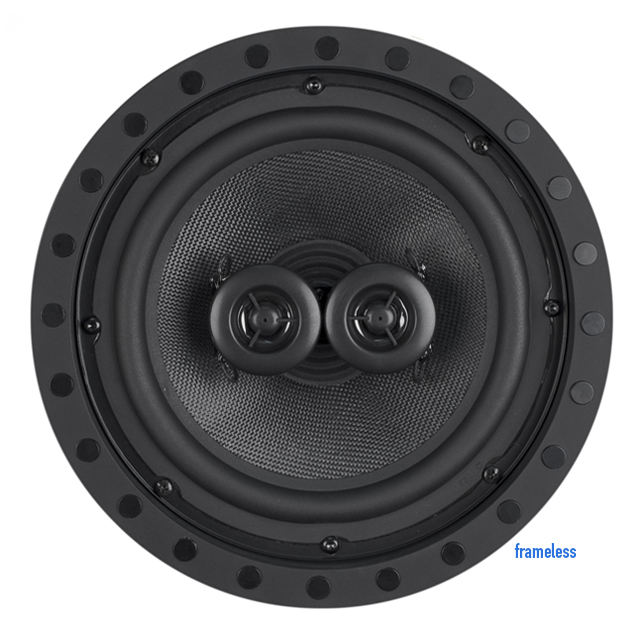

Frameless



 DESCRIPTION
The ArchiTech 8" in-ceiling custom installation single point stereo speakers combine the full frequency audio experience of 2 separate audio speakers but in a single space-saving chasis. The SC-822f is the right solution where space is limited but sound quality cannot be sacrificed.

Our ArchiTech Series cones are made from genuine DuPont™ Kevlar® fiber. For our ArchiTech Series, we developed cones that are an exceptional choice for high performance woofers. Their incredible strength enables low-distortion music reproduction, while their lightness provide great detail and musicality. The durability of our ArchiTech Series helps to provide a much longer lifespan along with higher environmental stability.

The ArchiTech Series is an excellent choice for custom installation applications where high quality music reproduction is required and rugged construction is appreciated. The Lifetime Limited Warranty is one indication of just how robust this family of loudspeakers really is.


 SPECIFICATIONS
Model Number: SC-822f - 8" 2-way Single Point Stereo
Frequency Response: 35Hz - 20kHz ± 3 dB
Power Handling: 60 watts nom. 120 max. both channels combined
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: Dual (L+R) 3/4" dome tweeters

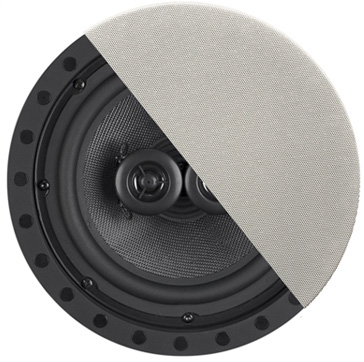

Frameless Grille: Magnetically Attached - Perforated Frameless Metal Grilles
All Weather Logo Round and Square option
  Round Model: MGR-8f  Square Model: MGS-8f
Impedance: 8 ohms nominal
Pre-construction Bracket: Pre-construction bracket: RIR-8
Vapor Dome / Pre-Con Bracket: VPD-8
Bridge for T-Bar Ceiling: PB-8
Plenum Dome: PE-8


 FEATURES
Frameless Grille
Woven woofers are made from genuine DuPont™ Kevlar® fiber with butyl rubber surrounds
Load-balancing toggle mounting system
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Eaches


 DIMENSIONS & WEIGHTS
Overall Dimensions: 9-7/8" Round
Cut-out Dimensions: 8-5/8" Round x 3-7/8" deep
Shipping Weight: N/A
Net Weight:  N/A
DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
