Product Line - Architech - Premium Series

MODEL: SC-602E-4BULK

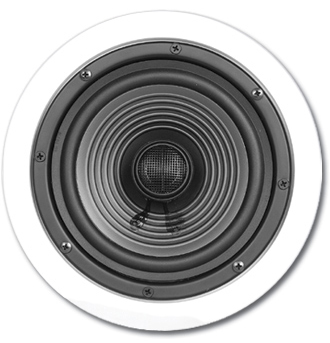

6-1/2" 2-way In-Ceiling Loudspeaker



 DESCRIPTION
Premium Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting soft dome tweeters. The frame and grille may be painted to match mounting surface.

The SC-602E is a 2 pair BULK pack of 6-1/2" round 2-way In-Ceiling Loudspeaker.


 SPECIFICATIONS
Model Number: SC-602E-4BULK- 6-1/2" 2-way Round In-Ceiling Loudspeaker
Frequency Response: 45Hz - 20kHz ± 3 dB
Power Handling: 40 watts nom. 80 max.
Sensitivity: 91dB 1 watt / 1 meter
Tweeter: 3/4" pivoting dome tweeter
Grille: Perforated Metal Grille: MGR-6
Impedance: 8 ohms nominal
Pre-construction Bracket:
Vapor Dome / Pre-Con Bracket:
Bridge for T-Bar Ceiling:
Plenum Dome:


 FEATURES
Poly woofers with butyl rubber surrounds
Load-balancing toggle mounting system
Frame and Grilles may be painted to match mounting surface
Sold and Shipped in Pairs ( 2 Pair BULK PACK)


 DIMENSIONS & WEIGHTS
Overall Dimensions: 8-3/8" Round
Cut-out Dimensions: 7-1/4" Round x 2-7/8" deep
Shipping Weight: N/A
Net Weight:  N/A

Master Carton Dimensions: 17"x11"x11"
Master Carton Weight: 12 lbs
Master Carton Quantity: 4 each
