AT-16PCBa

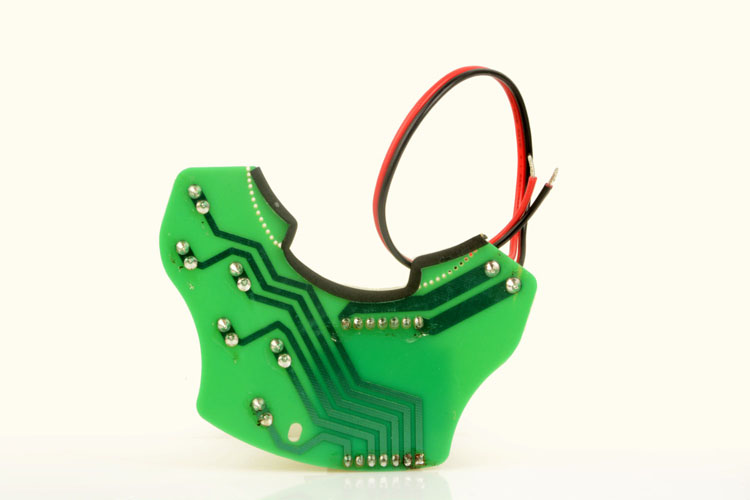

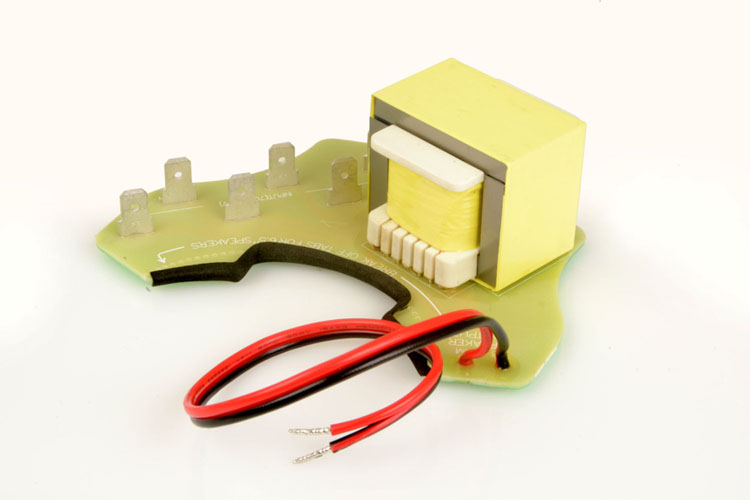

AT-16PCBa AT-16PCBa rear view AT-16PCBa Mounted to PE-620f AT-16PCBa Transformer Mounted to PE-620f

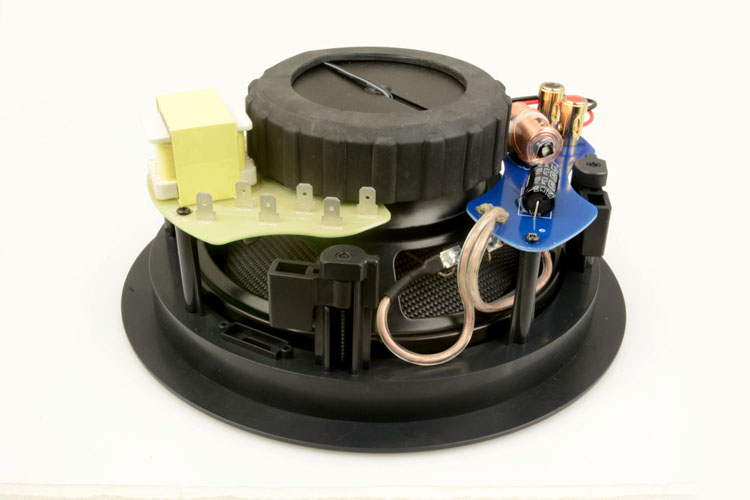

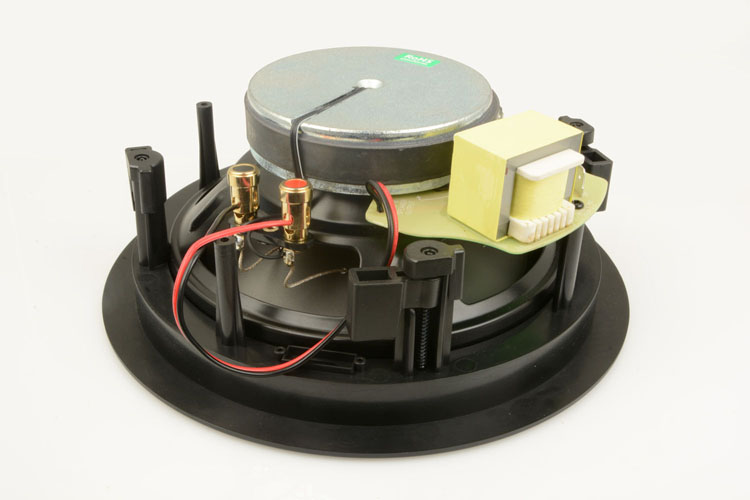

AT-16PCBa Mounted to PE-820f AT-16PCBa Transformer Mounted to PE-820f AT-16PCBa Mounted to SC-602f AT-16PCBa Transformer Mounted SC-602f AT-16PCBa Mounted to SC-802f AT-16PCBa Transformer Mounted to SC-802f

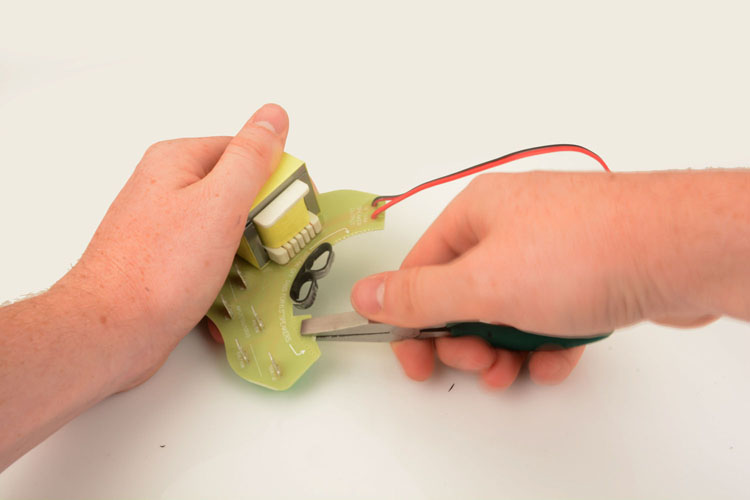

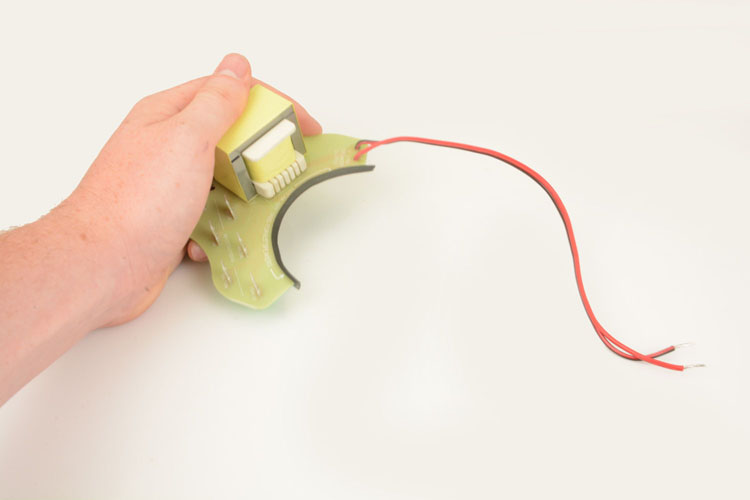

AT-16PCBa Detail: Removing tabs for 6-1/2" speaker installation AT-16PCBa Detail: Tabs removed for 6-1/2" speaker installation

Downloads
Installation Guide [PDF]

Lifetime Limited Warranty

CEDIA and RoHS Logos

MODEL: AT-16PCBa

PCB Mounted Commercial Transformer



 DESCRIPTION
Our new AT-16PCBa 70V / 100V transformers allow for an elegant and user-friendly installation. You may purchase our entry-level and mid-range in-ceiling speakers with the AT-16PCBa pre-installed or you may simply install them yourself. The AT-16PCBa installs securely on our 6-1/2" and 8" speakers with a single screw.  The pre-installed, pre-stripped, and pre-tinned, speaker cable connects to the input terminals of the speaker in just a few seconds. The 1, 2, 4, 8, & 16 watt FASTON®  style quick-connect terminals can be rapidly connected using T-tap connectors which require no cutting of the wire and no stripping of the conductor insulation for quick daisy-chaining. These features allow for an extremely speedy installation.


 SPECIFICATIONS
Model Number: AT-16PCBa
Frequency Response: 20Hz - 20kHz ± 1 dB
Power Handling: 1, 2, 4, 8, 16 watts taps




 FEATURES
Easy single screw installation
Can be pre-installed on some In-ceiling OEM models




 DIMENSIONS & WEIGHTS
Overall Dimensions: 4-1/4" L x 3-1/4" W x 1-1/2" H

Shipping Weight: N/A
Net Weight:  N/A
