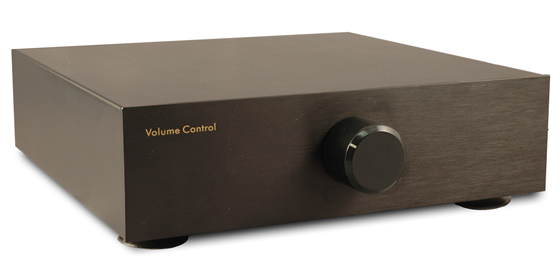

MODEL: TT-IMP100WV Discontinued

Indoor Rotary Tabletop Volume Control

Impedance Matching

DESCRIPTION

The TT-IMP100WV is a Table Top version of our 100W impedance matching volume control. It is connected between an amplifier and a pair of speakers and is most commonly used where it is impractical to install an in-wall control. Its 3.9lb weight and suction feet give it a solid feel and keep it firmly planted when dialing up the volume. The removable terminals and quick-access cover simplify the wire installation and the setup of the impedance-multipliers.

SPECIFICATIONS

Model Number:	TT-IMP100WV Rotary Volume Control - Impedance Matching
Frequency Response:	20-20 kHz +/- 0.5dB
Available Colors:	Black
Power Handling:	100 Watts Max per channel
Impedance:	Optimized for 8 ohm speakers

FEATURES

Impedance Matching Autoformer w/ Rotary 12 position switch

1X, 2X, 4X, 8X & 16X impedance multiplier

1X position allows use in ordinary applications

Smooth transition between volume steps

Protects amplifier by maintaining safe impedance

12-tap, high-grade 100-watt autoformer

Removable Input / Output terminal strip

Stereo Control (Can be used in Mono Applications.)

Suction Feet

Sold and Shipped Individually

DIMENSIONS & WEIGHTS

Overall Dimensions:	N/A
Mounting Dimensions:	8-1/2" W x 2-5/8" H x 9-1/2" D
Shipping Weight:	4.45 lbs
Actual Weight:	3.9 lbs
