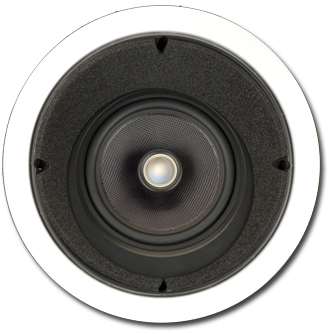

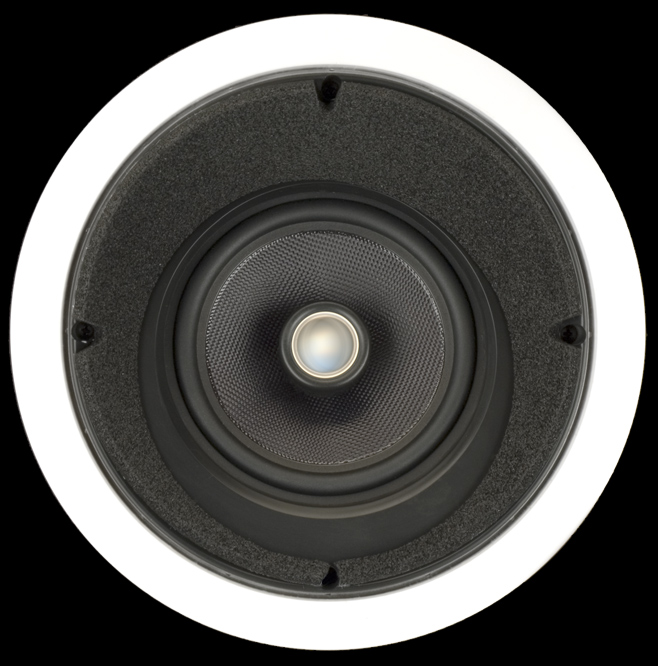

| 15 degree angle enables significantly enhanced cinematic sound imaging when room layouts dictate ceiling mounted loudspeakers. The PS-615 LCRSis a 6 1/2" 2-way round In-Ceiling Loudspeaker, sold in eaches. |
| Model Number: |
PS-615 LCRS - 6-1/2" 15 Degree Angled Loudspeaker |
| Frequency Response: |
40Hz - 22kHz ± 3 dB |
| Power Handling: |
50 watts nom. 140 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
1" lens-free aluminized ferro-fluid cooled pivoting dome
 tweeter
poly switch protected |
| Grille: |
Perforated Metal Grille: MGR-615 |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIR-615 |
| |
|
 Woven Kevlar® woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
 minimizes diffraction while maximizing dispersion |
| High temperature Polyimide voice coils |
| Proven Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Eaches |
| |
| Overall Dimensions: |
10-3/4" Round
|
| Cut-out Dimensions: |
9-1/4" Round x 5" deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
