Pro Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters. The frame and grille may be painted to match mounting surface.

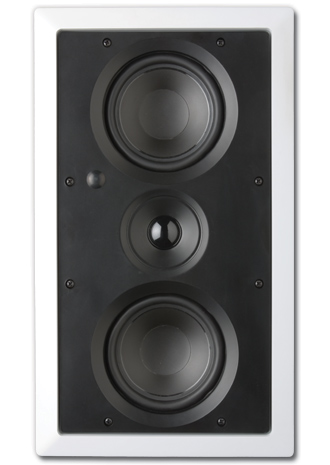

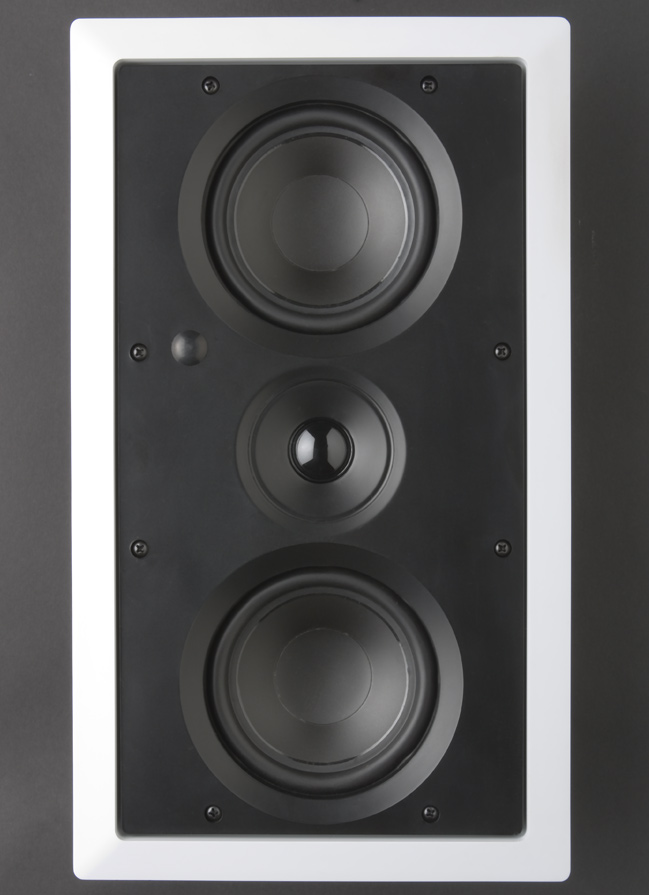

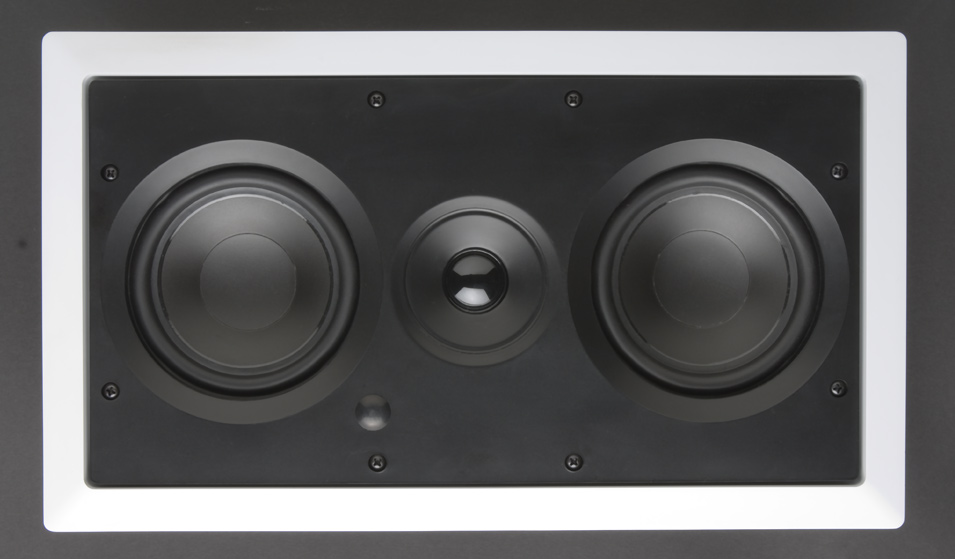

The AP-525 LCRS is a Dual 5 1/4" 2-way rectangular
Center / All Channel - LCRS
Magnetically Shielded
5.1, 6.1, & 7.1 Home Theater Systems
Specially designed for use in left,
center, right & surround loudspeaker
positions of home theater systems. |
| Model Number: |
AP-525 LCRS - Dual 5-1/4" 2-way Loudspeaker |
| Frequency Response: |
45Hz - 20kHz ± 3 dB |
| Power Handling: |
50 watts nom. 150 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters |
| Grille: |
Perforated Metal Grille: MG-LCR |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIB-LCR |
| |
|
 Poly woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
 minimizes diffraction while maximizing dispersion |
| Mounting provision for IR device |
| High temperature Aluminum voice coils |
| Proven Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Eaches |
| |
| Overall Dimensions: |
9" x 15-3/4"
|
| Cut-out Dimensions: |
7-7/8" x 14-7/16" x 3-1/2" deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
