Pro Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters. The frame and grille may be painted to match mounting surface.

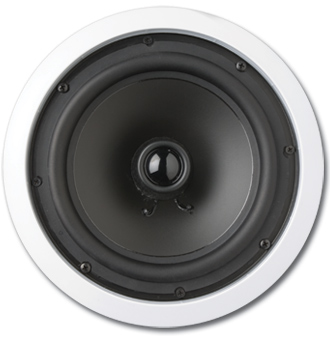

The AP-801 is a 8" round 2-way In-Ceiling Loudspeaker, sold in pairs. |
| Model Number: |
AP-801 - 8" 2-way Round In-Ceiling Loudspeaker |
| Frequency Response: |
40Hz - 20kHz ± 3 dB |
| Power Handling: |
60 watts nom. 120 max. |
| Sensitivity: |
91dB 1 watt / 1 meter |
| Tweeter: |
Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters |
| Grille: |
Perforated Metal Grille: MGR-8 |
| Impedance: |
8 ohms nominal |
| Pre-construction Bracket: |
Pre-construction bracket: RIR-8 |
| Vapor Dome / Pre-Con Bracket: |
VPD-8 |
| Bridge for T-Bar Ceiling: |
PB-8 |
| Plenum Dome: |
PE-8 |
| |
|
 Poly woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
 minimizes diffraction while maximizing dispersion |
| High temperature Poly imide voice coils |
| Proven Mounting System |
| Frame and Grilles may be painted to match mounting surface |
| Sold and Shipped in Pairs |
| |
| Overall Dimensions: |
9-3/4" Round
|
| Cut-out Dimensions: |
8-5/8" Round x 3-3/8 deep |
| Shipping Weight: |
N/A |
| Net Weight: |
N/A |
|
