Pro Series offers a variety of in-wall and in-ceiling loudspeakers. Long throw poly woofers with butyl rubber surrounds. Pivoting 1" Mylar soft dome ferro-fluid cooled tweeters. The frame and grille may be painted to match mounting surface.

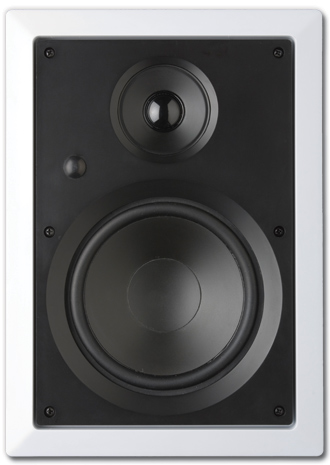

The AP-802 is a 8" rectangular 2-way In-Wall Loudspeaker, sold in pairs. |
Model Number: |
AP-802 - 8" 2-way In-Wal Loudspeaker |
Frequency Response: |
40Hz - 20kHz ± 3 dB |
Power Handling: |
60 watts nom. 120 max. |
Sensitivity: |
91dB 1 watt / 1 meter |
Tweeter: |
1" lens-free aluminized ferro-fluid cooled |
|
pivoting dome tweeter |
Grille: |
Perforated Metal Grille: MG-89F |
Impedance: |
8 ohms nominal |
Pre-construction Bracket: |
Pre-construction bracket: RIB-82 |
Vapor Dome: |
VPD-82 |
|
|
Poly woofers with butyl rubber surrounds |
Far-forward woofer mount with pole-mounted tweeter
minimizes diffraction while maximizing dispersion |
Mounting provision for IR device |
High temperature Aluminum voice coils |
Proven Mounting System |
Frame and Grilles may be painted to match mounting surface |
Sold and Shipped in Pairs |
|
Overall Dimensions: |
10-1/2" W x 14-1/2" H
|
Cut-out Dimensions: |
9" W x 13" H x 3-1/4" deep |
Shipping Weight: |
N/A |
Net Weight: |
N/A |
|
